²  Element:   Metal Oxide
²  Coating:  Ceramic Resin
²  Pipe: SUS304
²  Filling: Epoxy Resin, Black
²  Lead wire: Teflon
²  Connector: Optional

l  Dissipation Constant: Ta: 25℃ = 4 mW/℃
l  Response Time: 15 sec
l  Resistance at 25℃ : 10kΩ ~ 100kΩ
l  Resistance tolerance : ±1%,±2%,±3%,±5%
l  Operating temperature: -30 ~ 200℃
l  Application: Water heater, Bottle warmer

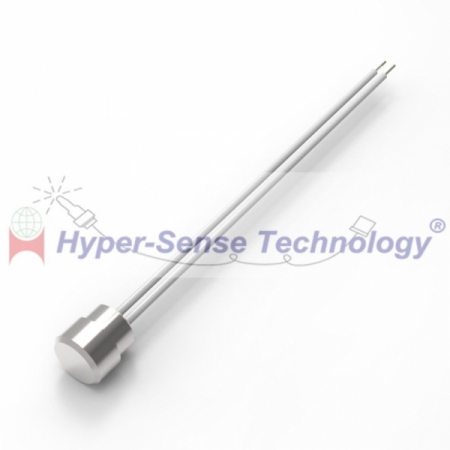

-  This sensor head is customized in contact to heating board. SUS pipe can withstand rapid temperature change and expansion of heating board. Glass bead element with silicone coating inside ensures great performance in high temperature. Teflon lead wire enables operation in high temperature up to 200℃. Various connectors are applicable, according to the mating units.
