²  Element:   Metal Oxide
²  Coating:  Epoxy Resin
²  Pipe: SUS304
²  Filling: Epoxy Resin, Black
²  Connector: TRS connector

l  Dissipation Constant: Ta: 25℃ = 5 mW/℃
l  Response Time: 5 sec
l  Resistance at 25℃ : 10kΩ ~ 100kΩ
l  Resistance tolerance : ±1%,±2%,±3%,±5%
l  Operating temperature: -30 ~ 80℃
l  Application:  Medical device, Wearable electronics

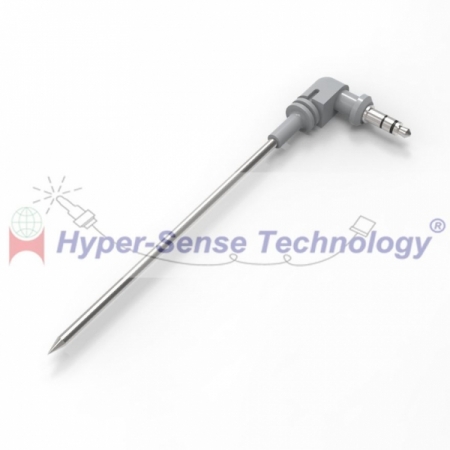

-  This connector integrated sensor is  a simple design for plug-in device with easier assembly and replacement. Because of the outer plastic case, generally the application temperature is less than 100 ℃. Sharp pointed probe tip enable quicker response to the contacted object. Variable electrical characteristics is available, please contact us for more information.
