²  Element:  Metal Oxide
²  Sealing:  Polymer film
²  Heat shrinkable tube: Polyolefin
²  Lead wire: PVC wire, Gray
²  Connector: Optional

l  Dissipation Constant: Ta: 25℃ = 0.7 mW/℃
l  Response Time: 5 sec
l  Resistance at 25℃ : 2kΩ ~ 100kΩ
l  Resistance tolerance : ±1%,±2%,±3%,±5%
l  Operating temperature: -30 ~ 90℃
l  Application: Battery pack

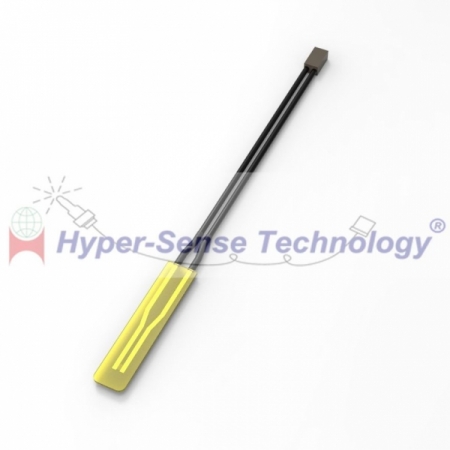

- The NTC chip is soldered to bare lead wire, and is sealed by polymer film tape. The unit is then connected to PVC insulated lead wire, with shrinkable tube cover over the soldering point. This product is mainly for small space in battery pack or PCB, with signal converter in long distance. It has fast response time and small dissipation constant. The operating temperature is around -30~90℃, and it may not tolerate heavy pumping or pulling force. Various wire material and connector is applicable by customer’s design.
